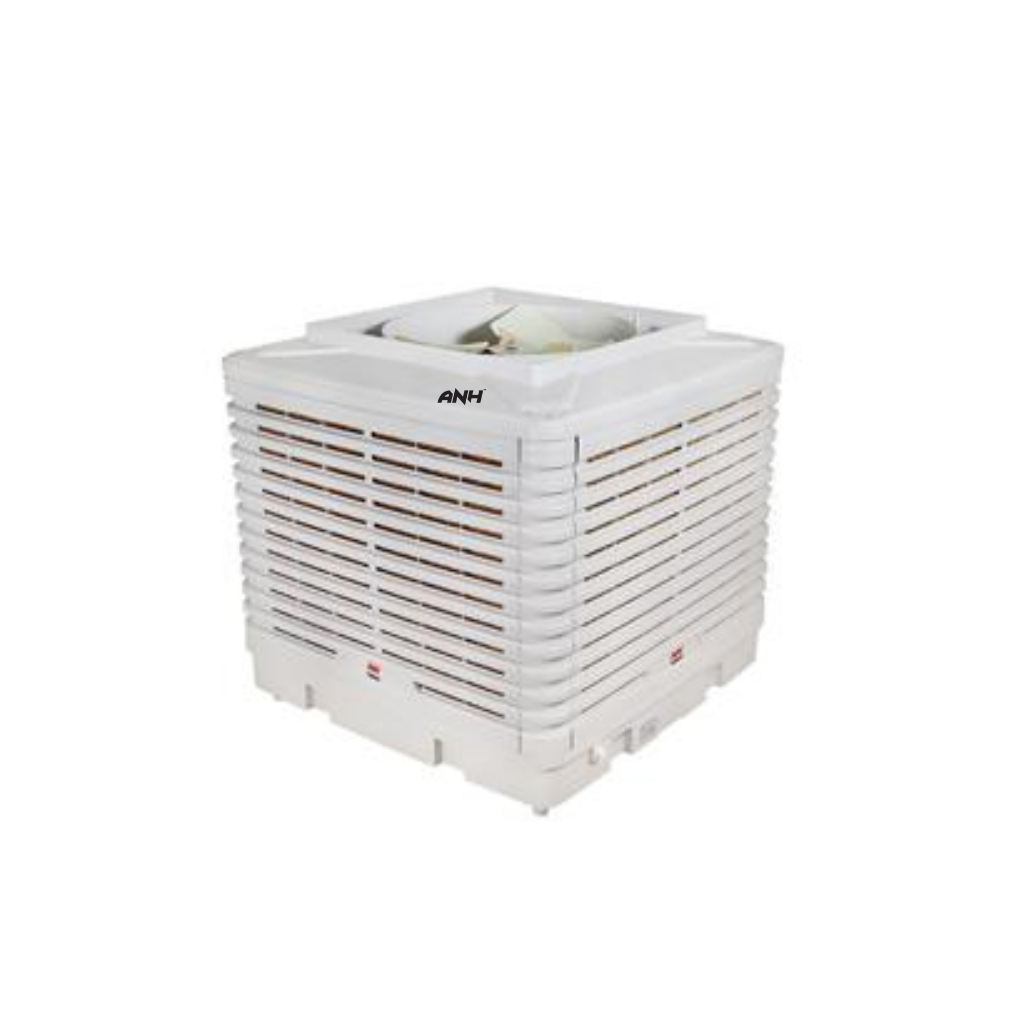

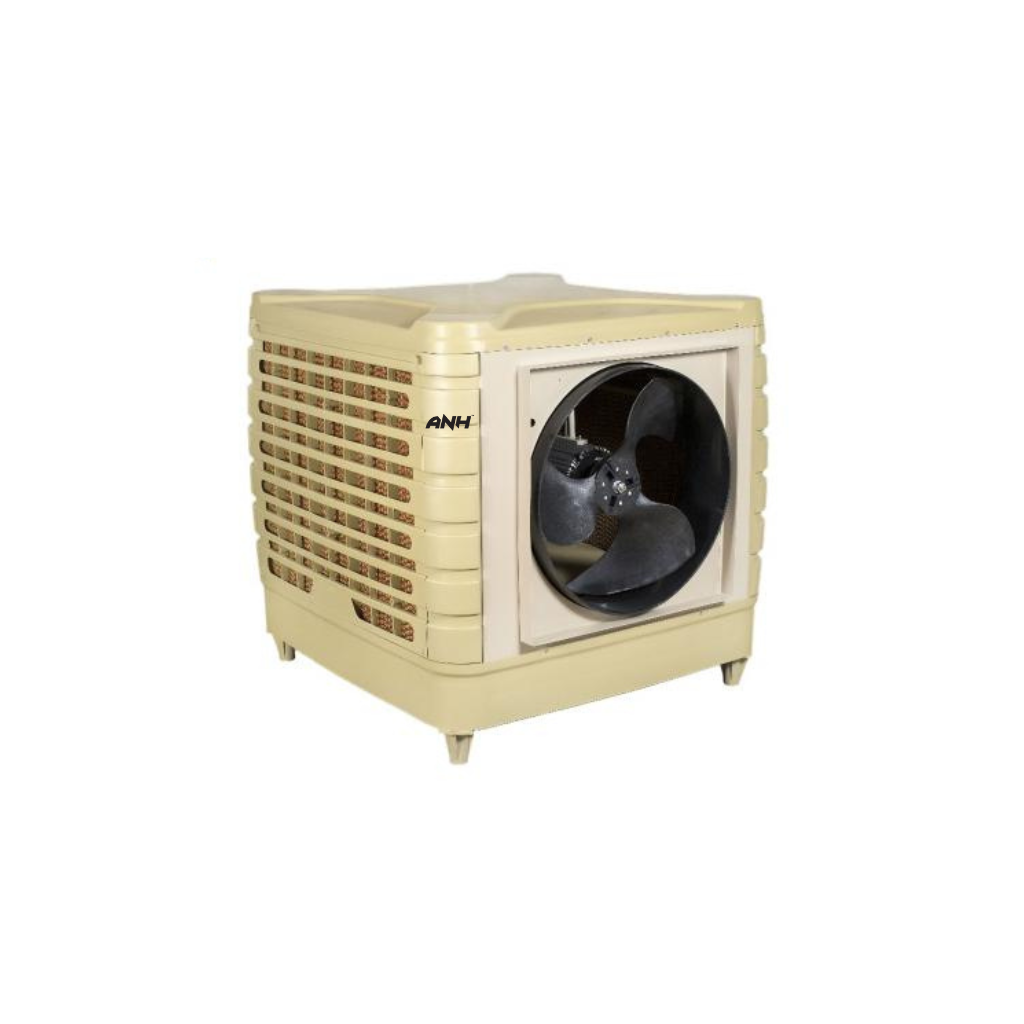

18000CMH Energy Saving Evaporation Air Cooler For Factory

Featuring high static pressure and an extended coverage range, this system incorporates a metal centrifugal fan for reduced noise levels. Additionally, it offers an optional temperature and humidity control function.

  • Brand: ANH
  • Item NO.: ANH30

Inquiry Now

The ANH evaporative air cooler is a device that cools air through the evaporation of water. Evaporative cooling differs from typical air conditioning systems which use vapor-compression or absorption refrigeration cycles. Evaporative cooling works by employing water’s large enthalpy of vaporization. The temperature of dry air can be dropped significantly through the phase transition of liquid water to water vapor (evaporation), which can cool air using much less energy than refrigeration. In extremely dry climates, evaporative cooling of air has the added benefit of conditioning the air with more moisture for the comfort of building occupants.

Airflow (m3/h) 20000
Air Pressure (Pa) 235
Fan Type Axial
Speed Variable speed
Noise (dB) ≤ 68
Effective Area (m2) 150-200
Evaporation Effiency (%) 85
Water Capacity (L) 40
Net Weight (kg) 78
Dimension (mm) 1100×1150×950

Detail Feature:

1)      Corrosion-resistant,UV-resistant,anti-deformation,stabilized,high strength structural polymer cabinet

2)      Large airflow,20000CBM/h,light weight,low noise

3)      Moisture proof ,variable speed motor,operates evenly and saves energy

4)      Controlled,open water distribution system enables smooth water flow

5)      High efficiency cooling pads,great evaporation,easy cleaning

6)      Intelligent,self cleaning control system provides water alarm protection,automatic circuit breaker

7)      Top discharge,down discharge and side discharge.(optional)
