CHM Energy Saving Central Air Conditioner For Factory

The dedicated energy-saving and dust-proof air conditioner designed for printing factories can provide an immediate 50% reduction in electricity consumption. Start cutting costs and boosting profits by investing in energy-efficient and dust-proof air conditioning. By saving 50% on electricity, the factory can achieve a 10% increase in profit, making it the most effective strategy for enhancing efficiency and reducing overall costs.

  • Brand: ANH
  • Item NO.: ANH30
Product Introduction
 CHM Energy Saving Central Air Conditioner For Factory

The special energy-saving and dust-proof air conditioner for the printing factory can save 50% of electricity immediately! Reduce costs and increase profits, starting with energy-saving and dust-proof air conditioning. The factory can save 50% electricity and increase 10% profit, which is the most effective way to reduce costs and increase efficiency.

Main Specifications:



Model: DKKFR100II cold and warm type



Rated refrigerating capacity 100KW Rated heating capacity 70KW
Rated refrigerating power 18KW Heating rated power 18KW
Cooling current 38A Heating current 36A
Anti touch type CLASS I Waterproof grade IPX4
Refrigerant R22 Circulating air volume 10000m³*2
Overall weight 2500kg Rated power supply 380V/3PH/50HZ
External dimensions 2650*1590*2860mm Internal dimensions 1200*830*1950mm



Model: DKKF100II single cooling type



Rated refrigerating capacity 90KW Fan power 4.4KW
Rated refrigerating power 19KW Water pump power 0.75KW
Cooling current 38A Heating current 46A
Anti touch type CLASS I Waterproof grade IPX4
Refrigerant R22 Circulating air volume 10000m³*2
Overall weight 1950kg Rated power supply 380V/3PH/50HZ
External dimensions 1450*2050*2100mm Internal dimensions 1200*850*1780mm



product description

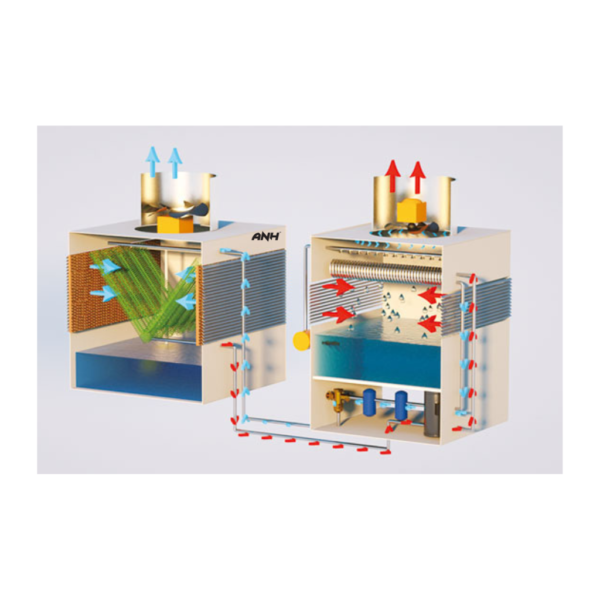

Evaporative cooling, dust-proof, energy-saving central air conditioner



The high-efficiency evaporative condenser makes full use of the physical principle of water evaporation and heat absorption. The system formed by the evaporative condenser has low condensation temperature, which makes the compressor run with low power and power consumption. The COP value can reach more than 4.7 (the COP value of ordinary air-cooled heat pump air conditioner is 2.3), which can realize energy-saving operation of the compressor.



The throttled low-pressure liquid refrigerant absorbs heat and evaporates, further reducing the inlet air temperature. The two- stage cooling improves the comprehensive energy efficiency of the air conditioning system (the comprehensive refrigeration cop can reach about 4.7), which saves 50% energy compared with the traditional air-cooled air conditioning.



product-750-540



Structure principle of two-stage dust-proof filter for air conditioning



The return air of the indoor unit of the air conditioning system is filtered by double- layer filter screen and wet curtain. Different particles of dust are filtered by stages to protect the cleanness of the evaporator and ensure the heat exchange efficiency and system life.



According to the dust, paper wool and powder particle diameter of the printing and packaging industry, different mesh filters are designed to achieve effective filtration.



product-750-750
