Energy Saving Air Cooling Condensing Air Conditioner
1. Air cooled packaged air conditioner main features:
(1) Advanced high efficiency flexible scroll compressor; (2)Micro-computer intelligent controller; (3) Multiple safety protections; (4) Superior quality or capillary tube.
Eurostars air-cooled type packaged air conditioners, which are a combination of an indoor unit and an air-cooled outdoor unit, have been developed for free-blow or duct connection type air conditioning systems in domestic, commercial and industrial applications.
The indoor unit is composed of hermetic type compressor(s), an evaporator, an evaporator fan(s), a fan motor and auxiliary components enclosed in a floor standing cabinet, which match any interior decor.

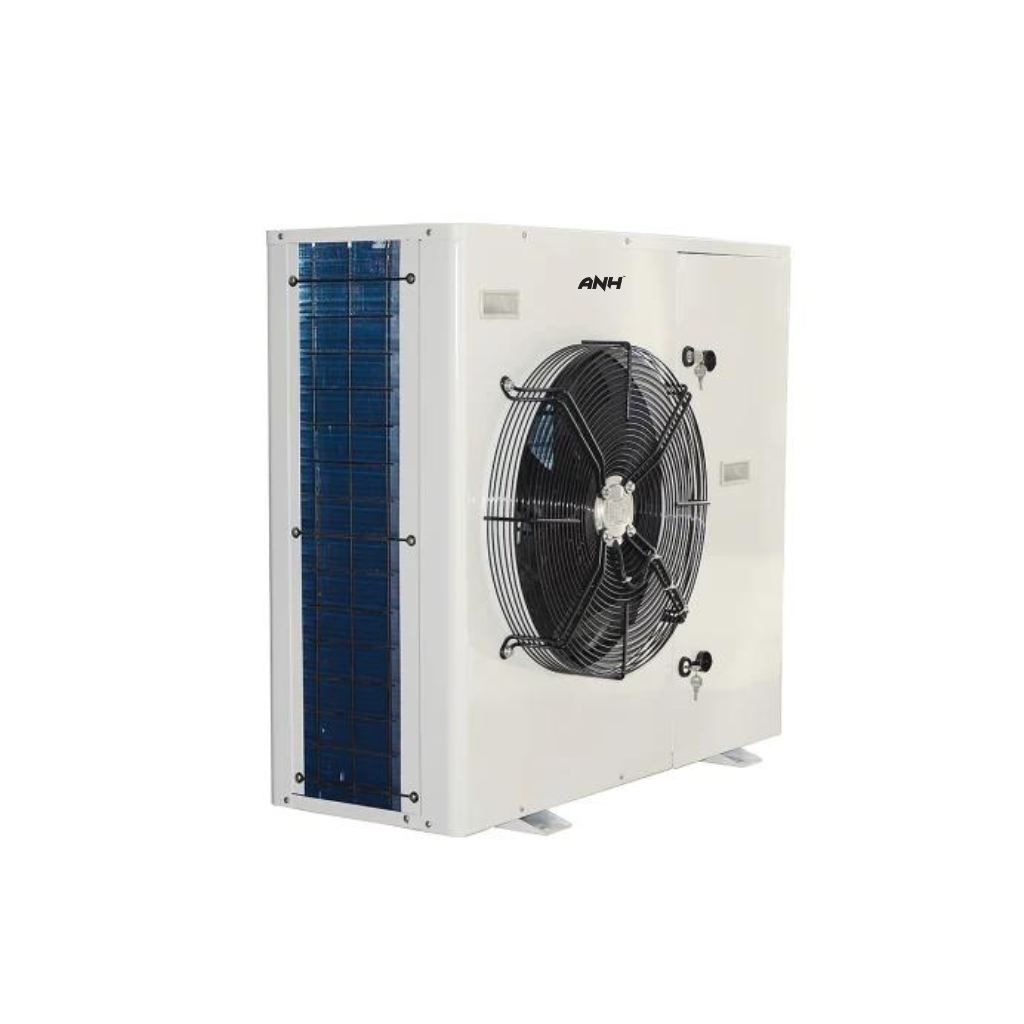

The outdoor unit is composed of an air-cooled condensers, a propeller fan(s) and a fan motor(s). The weather-proof structure makes the outdoor unit suitable for rooftop, on-the-ground or other outdoor installations. These completely factory-assembled and tested units provide minimum installation work and excellent performance, matching modern air conditioning requirements.
The heating operation and the humidifying operation are applicable, by equipping optional accessories.
2. Nomenclature-Air cooled central packaged air conditioner
ES S A 25 PU T C H
1 2 3 4 5 6 7 8
1: ES Eurostars
2 :S Compressor type: S-Scroll G-Screw P-Hermetic piston B-Semi-hermetic piston R-Rotary
3 :A Product series No.: A-Air cooled commercial series
4 :25 Cooling capacity:USRT
5 :PU Product type: PT:Purified thermostatic and humidistat PU: Purified
HT: Thermostatic and humidistat
6 :T Compressor quantity: S-Single D-Double T-Triple Q-Quadruple F-Fivefold
7: C Frame type: C-Cabinet type O-Open type
8 :H Function: H-Heat pump E-Electrical heating
Cooling or Heating only- when not to mention any letter
Please ask salesman for detailed complete data or visit our website:
eurostarschiller.en.made-in-china.com
| Air Cooled (Heat Pump)Packaged Air Conditioner | |||||||||||
| Model ESSA~ | 4.5SC | 6.5DC | 8.5DC | 12.5TC | 18DC | 20DC | 25TC | 30TC | 40QC | ||
| 4.5SCH | 6.5DCH | 8.5DCH | 12.5TCH | 18DCH | 20DCH | 25TCH | 30TCH | 40QCH | |||
| Technical Parameters |
Cooling Capacity | KW | 15.0 | 23.6 | 29.9 | 44.9 | 60.0 | 67.0 | 90.0 | 103.5 | 138.0 |
| USRT | 4.3 | 6.7 | 8.5 | 12.8 | 17.1 | 19.1 | 25.7 | 29.6 | 39.4 | ||
| Heating capacity | KW | 15.9 | 25.0 | 31.7 | 47.6 | 63.6 | 71.0 | 95.4 | 109.7 | 146.3 | |
| Rated Air Flow | CMH | 2500 | 4000 | 5100 | 7800 | 10200 | 12600 | 15300 | 20400 | 25500 | |
| External Static Pressure | Pa | 100 | 150 | 150 | 150 | 200 | 250 | 300 | 350 | 400 | |
| Power Supply | 380V-3PH-50Hz | ||||||||||
| Cooling Input Power | KW | 5.1 | 8.0 | 10.4 | 15.4 | 20.6 | 23.5 | 31.6 | 36.3 | 48.5 | |
| Cooling Current | A | 11.2 | 16.8 | 22.0 | 32.6 | 38.9 | 43.9 | 59.7 | 67.3 | 89.6 | |
| Heating Input Power | KW | 5.0 | 7.8 | 10.2 | 15.1 | 20.0 | 23.1 | 30.7 | 35.6 | 47.6 | |
| Heating Current | A | 11.1 | 16.6 | 21.8 | 32.3 | 37.4 | 43.5 | 57.4 | 66.7 | 88.8 | |
| Cooling Max. Input Power | KW | 7.2 | 11.3 | 14.7 | 21.9 | 28.7 | 32.7 | 43.8 | 50.0 | 66.8 | |
| Cooling Max. Current | A | 15.2 | 22.9 | 30.0 | 44.6 | 53.5 | 60.1 | 81.6 | 91.6 | 122.0 | |
| Noise | dB(A) | ≤60 | ≤64 | ≤66 | ≤68 | ≤70 | ≤72 | ≤73 | ≤76 | ≤77 | |
| Connecting Pipe | Liquid | Ø12.7 | Ø12.7/Ø9.52 | Ø12.7 | Ø12.7 | Ø16 | Ø16 | Ø16 | Ø16 | Ø16 | |
| Connecting Pipe | Air | Ø19 | Ø19/Ø16 | Ø19 | Ø19 | Ø25 | Ø28 | Ø25 | Ø28 | Ø28 | |
| Indoor Unit | Evaporator | Ripple Aluminum Fins around Copper Pipe | |||||||||
| Centrifugal Fan | Type | Outer Rotor | The Belt Transmission Centrifugal | ||||||||
| Qty | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 2 | ||
| Power (KW) | 0.45 | 0.75 | 1.1 | 1.5 | 2.2 | 3 | 4 | 5.5 | 7.5 | ||
| Air Filter | Nylon Netting | ||||||||||
| Dimension | W (mm) | 800 | 960 | 1200 | 1700 | 1700 | 1700 | 1880 | 2050 | 2450 | |
| D (mm) | 550 | 520 | 600 | 600 | 750 | 750 | 1010 | 1150 | 1300 | ||
| H (mm) | 1770 | 1730 | 1730 | 1780 | 1810 | 1810 | 1810 | 1930 | 1990 | ||
| N.W. | kg | 120 | 180 | 240 | 300 | 450 | 460 | 540 | 800 | 1100 | |
| Outdoor Unit | Model | ES-5U | ES-5U+ES-3U | ES-5U*2 | ES-5U*3 | ES-10U*2 | ES-12.5U*2 | ES-10U*3 | ES-12.5U*3 | ES-12.5U*4 | |
| Compressor | Type | Hermetic Scroll Type | |||||||||
| Power(HP)*Qty | 5*1 | 5+3 | 5*2 | 5*3 | 10*2 | 12.5*2 | 10*3 | 12.5*3 | 12.5*4 | ||
| Air Flow | CMH | 6200 | 6200+3100 | 6200*2 | 6200*3 | 15000*2 | 15000*2 | 15000*3 | 15000*3 | 15000*4 | |
| Dimension | W (mm) | 960 | 960+850 | 960*2 | 960*3 | 1000*2 | 1000*2 | 1000*3 | 1000*3 | 1000*4 | |
| D (mm) | 350 | 350+300 | 350*2 | 350*3 | 885*2 | 885*2 | 885*3 | 885*3 | 885*4 | ||
| H (mm) | 1260 | 1260+600 | 1260*2 | 1260*3 | 930*2 | 1088*2 | 930*3 | 1088*3 | 1088*4 | ||
| N.W. | kg | 120 | 120+80 | 120*2 | 120*3 | 210*2 | 230*2 | ||||
