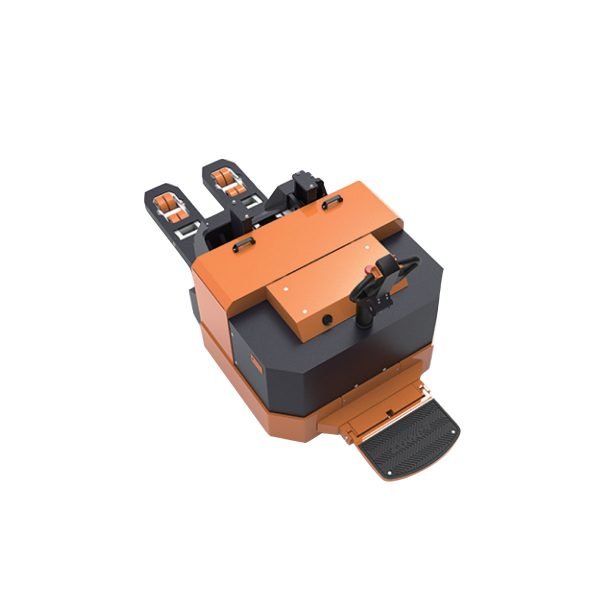

Heavy Duty Pallet Truck Zowell -XP

Short Descriptions:

  • Model NO. : XTB
  • Traction Weight : 4-12t
  • Cab Location : Adjustable
  • Power : Electric
  • Load Capacity : 4T – 12T
  • Fuel : Electric
  • Capacity : 4001kg-12000kg
  • Trademark : Zowell
  • Transport Package : Wooden Pallet
  • Specification : CE
  • Origin : Suzhou, China

Product Descriptions:

Features:

  • SWISS BUCHER hydraulic pump.
  • Regenerative braking function.
  • CURTIS AC electronic controller.
  •  Germany Frei handle.
  • Imported ZF gearbox.
  • The handle is designed with emergency reversing device for improved operating safety.
  • Emergency power disconnect switch.
  •  Horizontal and vertical braking function of the handle allows increased safety of this electric pallet truck.
  • EPS (electric power steering).



XP40 XP50 XP60 XP70
Load capacity kg 4000 5000 6000 7000
Load center mm 850 850 850 850
Wheelbase mm 2205 2205 2205 2205
Weight(w/o battery) Kg 1550 1650 1650 1700
Driving wheel size mm Φ248×75 Φ248×75 Φ248×75 Φ248×75
Loading wheel size mm Φ125×50 Φ125×50 Φ125×50 Φ125×50
Balancing wheel size mm Φ90×88 Φ150×50 Φ150×50 Φ150×50
Overall width mm 900 900 900 900
Overall length mm 2767 2767 2767 2767
Turning radius mm 2500 2536 2536 2536
Fork width Drive mm 700 700 700 700
motor rating Lift kw 3 3 3 3
motor rating kw 3 3 3 3



XP80 XP100 XP120
Load capacity kg 8000 10000 12000
Load center mm 850 850 850
Wheelbase mm 435 2258 2258
Weight(w/o battery) Kg 2211 2410 2510
Driving wheel size mm Φ248×75 Φ310×140 Φ310×140
Loading wheel size mm Φ160×50 Φ200×60 Φ200×60
Balancing wheel size mm Φ150×50 Φ150×60 Φ150×60
Overall width mm 900 1220 1220
Overall length mm 2767 2840.5 2840.5
Turning radius mm 2542 2965 2965
Fork width Drive mm 700 900 900
motor rating Lift kw 3 4.5 4.5
motor rating kw 3 6.3 6.3
