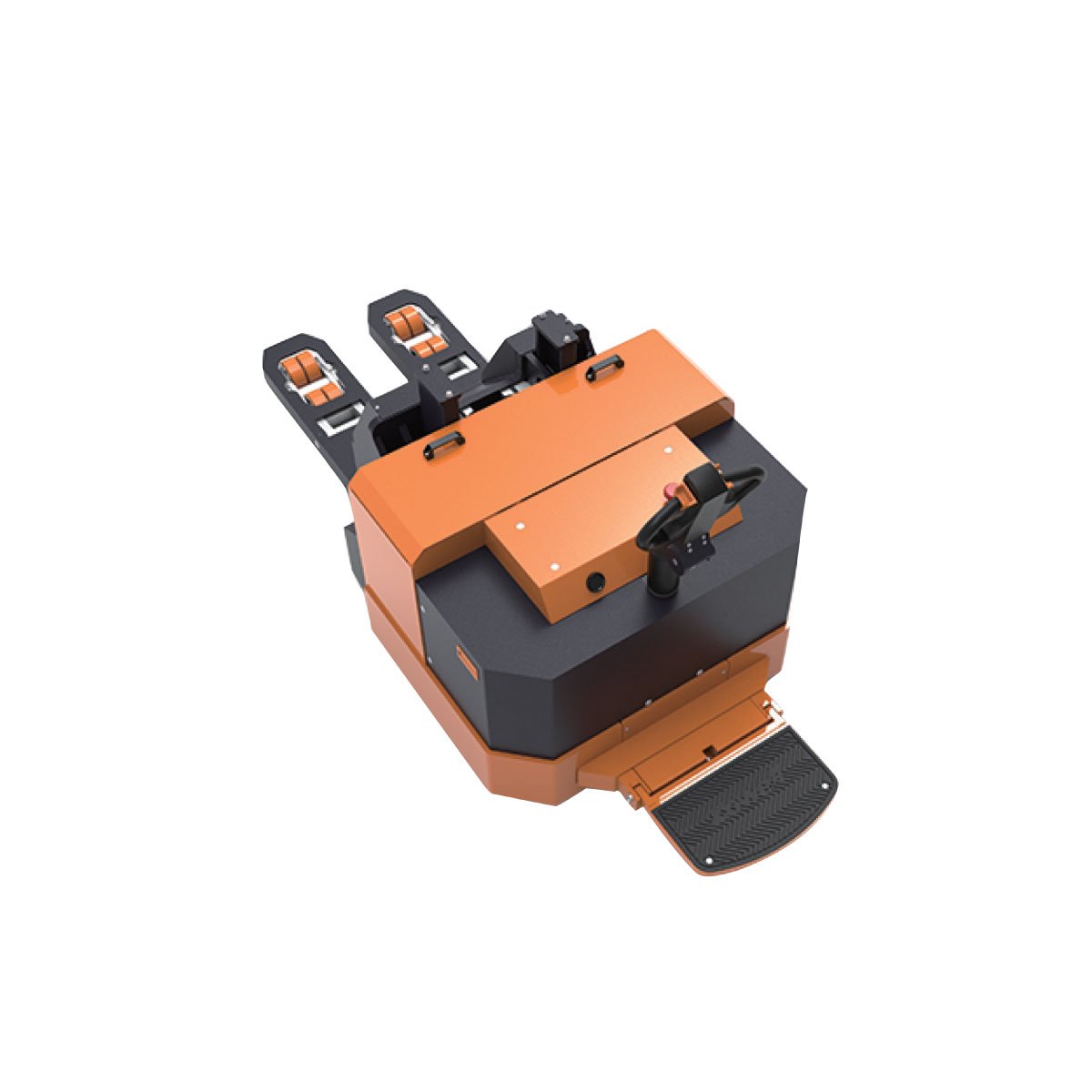

Electric Pallet Truck Zowell – XP

Basic Info.

  • Model NO. : XP25
  • Fork Length: 1150mm
  • Overall Width: 725mm
  • Forks Width: 560mm
  • Overall Height: 1280mm
  • Trademark: Zowell
  • Specification: CE
  • Origin: Jiangsu, China

Product Descriptions:

Features:

  • SWISS BUCHER brand Hydraulic pump.
  •  Regenerative braking function
  •  CURTIS electronic controller
  • Germany Frei handle
  •  Emergency reversing device in the handle provides improved operating safety.. Emergency power disconnect switch.
  •  Braking applied with handle upright and horizontal position, increasing the safety of the truck.
  • Five points structure brings the truck more stability.





Identification Product model designation XPC15
Drive unit Electric
Operate type Standing or Pedestrian
Load capacity Q  kg 1500
Load center C  mm 600
Load distance,
Center of drive axle to fork back
X  mm 959
Wheelbase Y   mm 1300
weight Truck weight (without battery) kg 253
Axle loading , loaded(front/rear) kg 585/1157
Axle loading , unloading(front/rear) kg 176/76
Wheel Tires
Drive wheels size mm 210×70
Loaded wheels size mm 80×98
Balance wheels size mm 100×40
Wheels number, front/rear(x=driven wheels) 1x+4/1x+2
Tread ,front mm
Tread ,rear mm 360/420/520
Dimensions Height, mast lowered h1  mm
Lift height h3  mm 125
Forks height, lowered h5  mm 28
Height of tiller in drive Position(max/min) h6  mm 1160/720
Overall length L1  mm 1604
Length to face of forks L2  mm 452
Overall width b1  mm 630
Fork dimensions s/e/l mm 56/160/115
Maximum forks width b3  mm 520/560/680
Minimum ground clearance M  mm 24
Aisle width for pallets 800×1200 lengthways Ast mm 2168
Turning radius Wa mm 2080
Performance Travel speed         loaded/unload Km/h 3.5/4
Lift speed              loaded/unload mm/s 0.4/0.5
Lowering speed   loaded/unload mm/s 0.5/0.4
Max grade ability  loaded/unload % 5/10
Service brake
Electric motor Drive motor rating kW 0.75
Lift motor rating kW 0.8
Battery voltage/capacity V/Ah 24/80
Battery weight kg 52
others Control unit type DC
Sound level Db(A) 70
