Woven Fabric Inspection Machine Without Platform

Basic information:

  • Categories: Fabric Inspection Machines
  • Brand: Suntech
  • Model: ST-WFIM-T
  • Voltage: 3 phase-380V; 50HZ (Adjustable)
  • Power(W): 3050X2630X2430mm(FOR ST-WFIM-180 ONLY)
  • Weight: 700KGS(FOR ST-WFIM-180 ONLY)

Woven Fabric Inspection Machine Without Platform:

ST-WFIM-G Fabric Inspection Machine is used to handle a wide range of rolled fabrics, which is specially designed for garment factories. This machine can be used for fabric inspection, measuring, rolling, and cross-cutting purposes.
  • Ergonomically designed
  • Fast and easily handled, requiring for one operator only
  • Improve fabric quality
  • Synchronize production process
  • Provide objective quality reporting 5. Reduce administration

Technical specification:









Model:
ST-WFIM
Fabric Width:
1.8~4.0 meters
Standard Roll Diameter:
500mm
Dimensions(LXWXH)
3050x2630x2430mm(for model ST-WFIM-180 only)
Weight:
1000kgs(for model ST-WFIM-180 only)
Electric Specs:
3phase-380v; 50HZ(can be adjusted to suit for different countries)
Remark:
Variable working width is possible and can be tailor-made to your requirements of processing needs.

Features:

  • End of Fabric Roll Stop Sensor- Allow for next roll joining, continuously from one piece of fabric to next.
  • Full-Width Fabric Inspection-with 30 degree fixed inspection screen.
  • Accurate Length Counting(Y/M)-counting error ≤01m/km.
  •  Accurate Fabric Edge Controlling- Edge alignment error ≤6mm.
  • Consistent Roll Output- Rol hardness adjustable.
  • Available for different Fabric Input and Output Presentation, like plait to roll, roll to roll, etc.- Synchronize with other production operations.
  • Selvedge Shifting Device-ideal for Thick/Sulzer Selvedges. (Option)

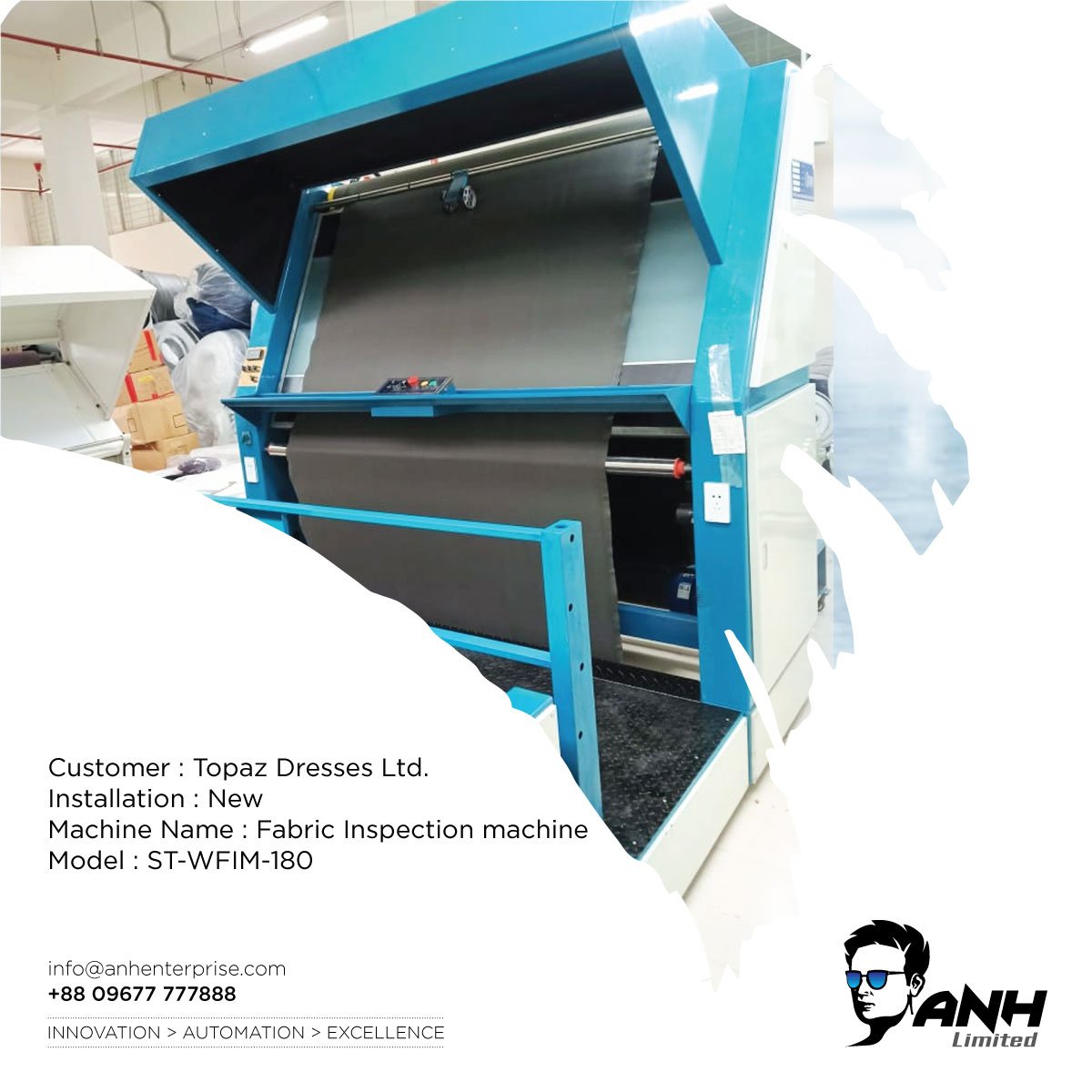

Project:

Customer: Topaz Dresses Ltd.
Installation: New
Machine Name: Fabric Inspection machine
Model: ST-WFIM-180

... ... ...
... ...
