Telescopic Belt Conveyor

BRAND: ANH

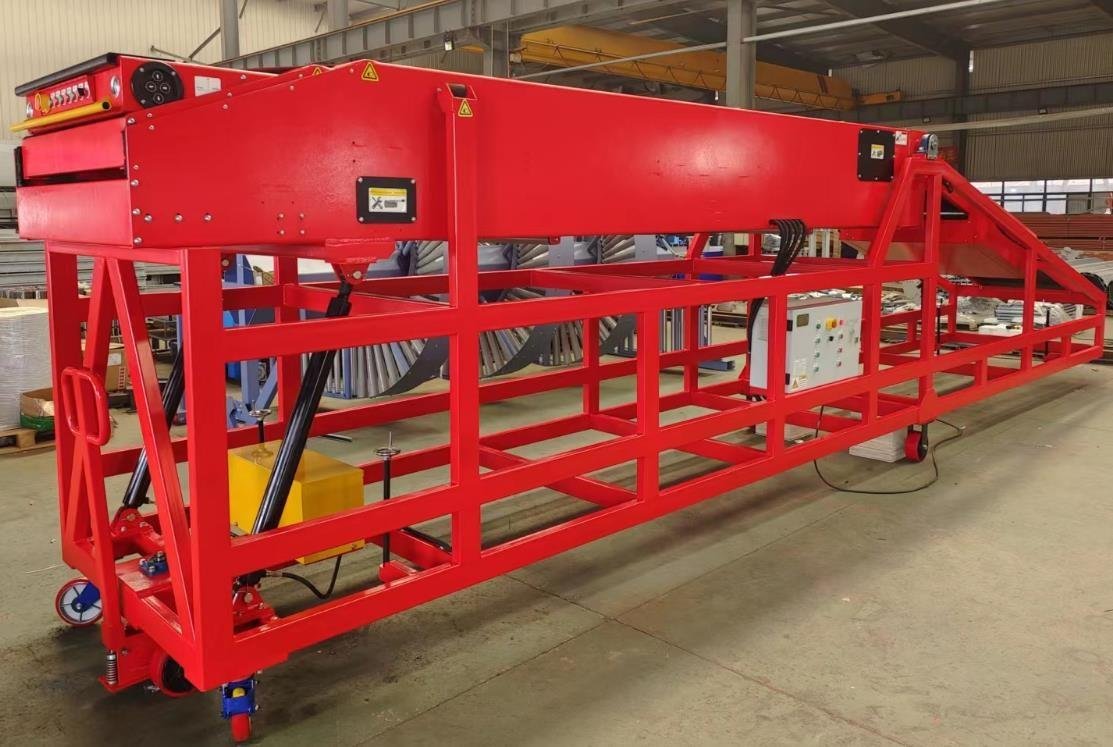

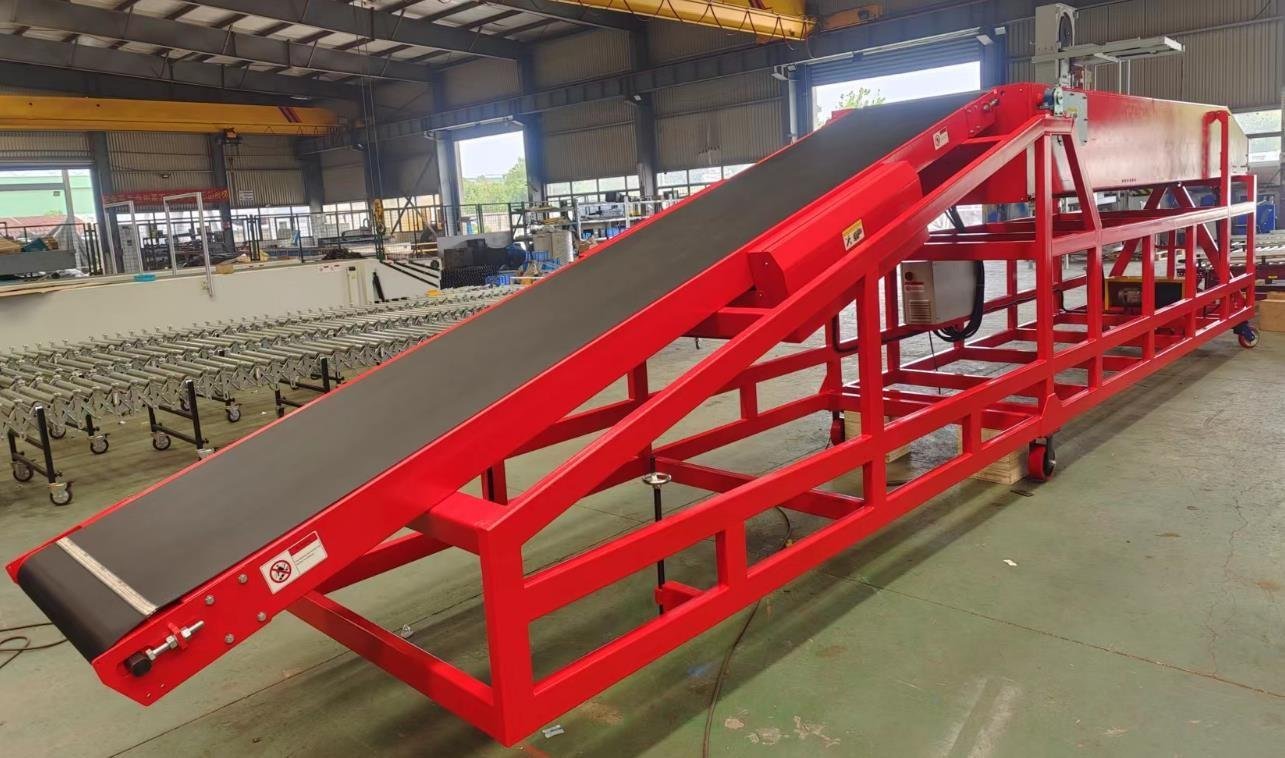

A high chassis telescopic belt conveyor is suitable for dockless warehouses. This is a complete movable loading and unloading equipment, by manual movement or equipped with a motorized movement system. Widely used in Textiles, E-commerce, Third party logistics, Food, Beverages, Pharmaceuticals, Clothes, furniture and FMCG, etc.

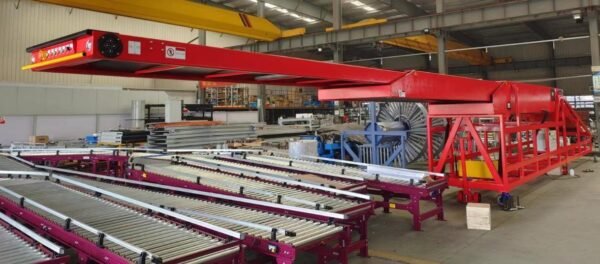

☆ Base section 5000mm+4500mm, extension sections 6500mm
☆ Overall Width: 1390mm
☆ Overall Weight: 4000kg (Approximately)
☆ 2nd section height to ground: 1800mm
☆ Belt width: 3mm thickness black PVK belt, width 800mm
☆ Running speed: 10-35m/minute (adjustable with Schneider frequency converter)
☆ Belt running direction: Bi-directional (Forward& Reverse)
☆ Belt driven/ Telescopic motor/ Inclined part motor: SEW or Nord brand
☆ Hydraulic up/down: 0~4°, can lift up 780mm at front from belt level
☆ PLC: Siemens brand
☆ Frequency converter/contactor/relay/button: Schneider

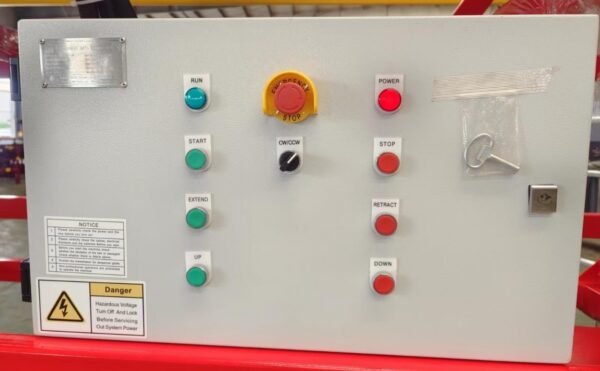

☆ Control panel: 2 sets (1 set at electrical control box included EMERGENCY STOP, START, STOP, EXTEND, RETRACT, UP, DOWN, CW/CCW for running direction switch and POWER/RUN indicator, another set at the front of conveyor included START, STOP, EXTEND, RETRACT, UP, DOWN, LIGHT, EMERGENCY STOP)
☆ Surface treatment: powder coated, color to be confirmed.
☆ Use: Mobile with caster wheels by manual
☆ Capacity: maximum 50kg/m
☆ Power supply: 3 phase +N+PE, 380V 50HZ
☆ Electrical cable: 10 meters with a set of female/male plug
